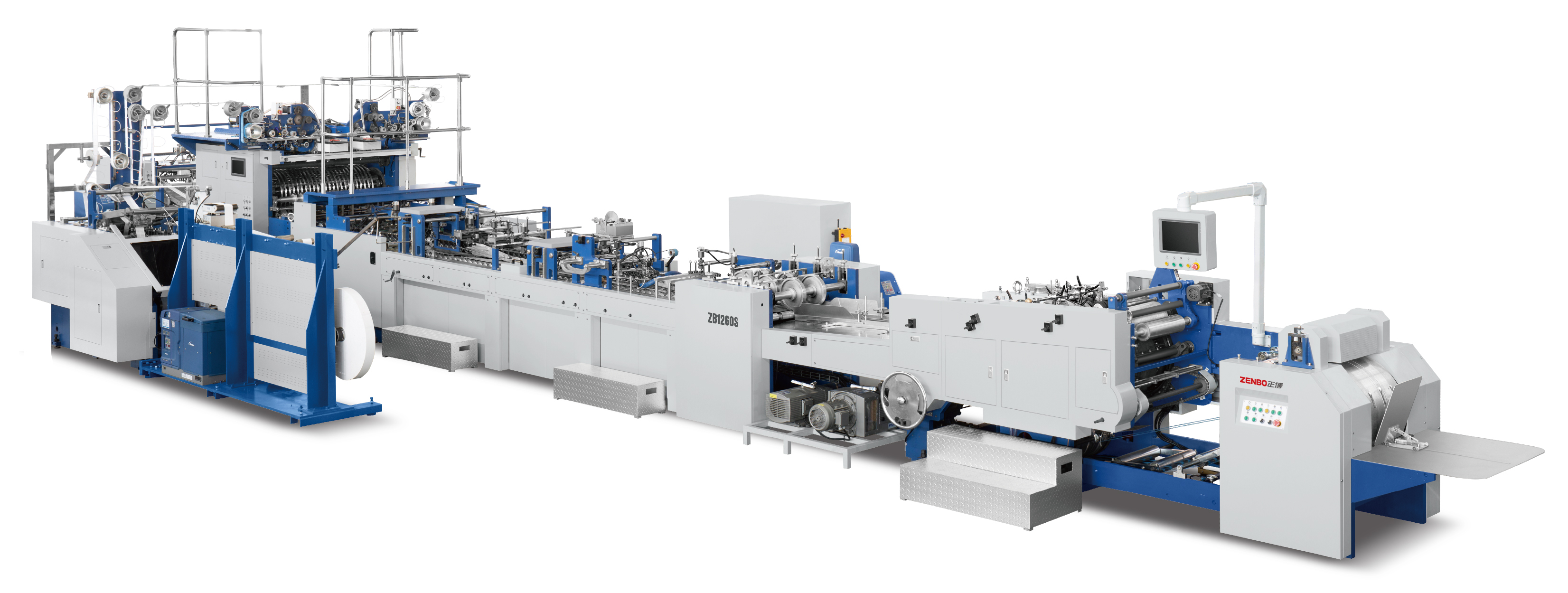

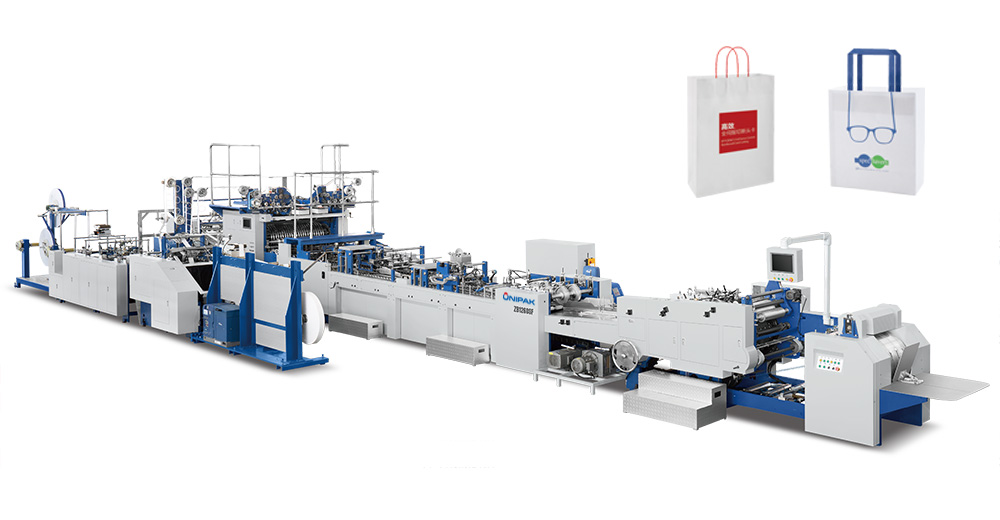

ZB1260SF-450

Product Introduction

The brand new, sheet feeding ZB1260SF-450 fully automatic paper bag making machine is perfectly suited for high volume paper bag production of various kinds of paper, including kraft paper as well as laminated coated and art paper. It is designed to produce paper bags with or without paper handles (twisted rope handle or flat handle) or with punched holes instead.

ZB1260SF-450 includes two sets in-line handle making system:

  • Twisted rope handle from twisted paper ropes and automatic application of paper patch for reinforcement
  • Flat handle from folded flat paper ropes and automatic application of paper patch for reinforcement.

ZB1260SF-450 can produce three different types of bag top options:

  • Handle application with top folding and paper patch for reinforcement
  • Handle application with paper patch for reinforcement, without top folding
  • Punching holes with top folding and paper patch for reinforcement

Paper patch cutting is servo controlled – easy operation and stable running, no register holes.

Equipped with non-stop sheet feeding, register, creasing, in-line handle making, reinforced paper patch pasting and gluing, top fold / without top folding, with or without hole punching, side gluing, gusset forming, bottom folding and pasting.

Standard with Nordson hot-melt gluing system for handle application and environmentally friendly water soluble cold glue for side gluing.



Suitable paper



Specifications



Optional Equipment


Nordson hot melt gluing system for bag side gluing
