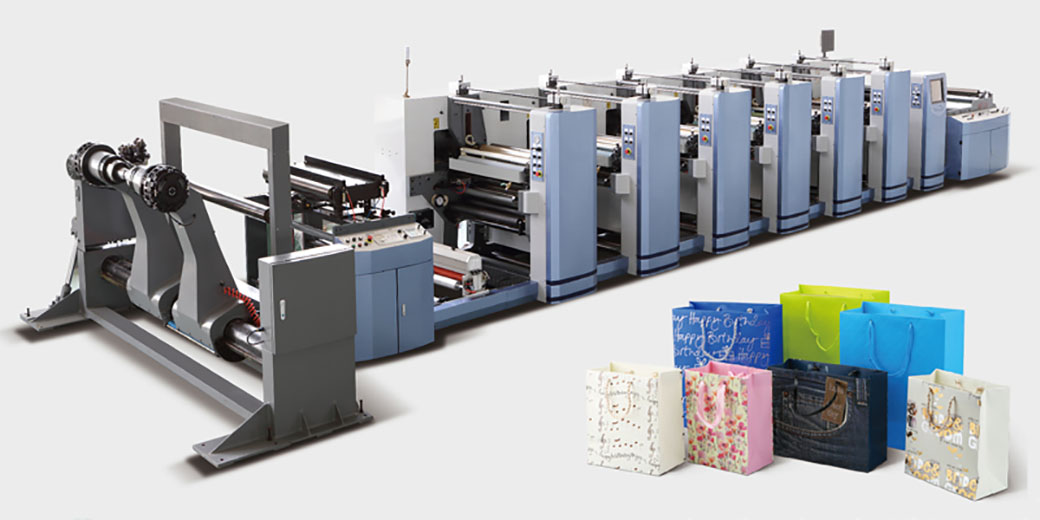

Product Introduction
Application Object:
Suitable for eco-friendly packaging,such as the pre-printing carton of paper bag,paper box,paper cup used for food,medicine used.
Paper Used:
Kraft paper,carton board materials,coated paper,liner paper,laminated paper,nonwoven paper
Machine Features
1.Capable of inline cleaning dust,printing,and cutting
2.Eco-friendly printing,water based ink and UV ink used
3.Ceramic anilox rollers can be used for a long time,and can supply ink appropriately
4.Warm drying,IP drying,UV drying are available
5.Closed loop tension controlis used to make printing tension much more stable,and register much more accurate
6.Automatically electronic web-guide system
7.Online printing register detection
8.Register system can be operated automatically or by manpower
Specifications
| Specification | 35.5″(900) | 39.5″(1000) | 47.5″(1100) | 47.5″(1200) | 50.5″(1280) |
| Max. web width | 920mm | 1020mm | 1120mm | 1220mm | 1300mm |
| Max. printing width | 900mm | 1000mm | 1100mm | 1200mm | 1280mm |
| Max. die-cutting width | 900mm | 1000mm | 1100mm | 1200mm | 1280mm |
| Printing Repeat | 286–1200mm | 286–1200mm | 286–1200mm | 286–1200mm | 600–1430mm |
| Die-cutting Repeat | 286–1200mm | 286–1200mm | 286–1200mm | 286–1200mm | 600–1430mm |
| Max. unwinder Diameter | 1524mm/1200mm | 1524mm/1200mm | 1524mm/1200mm | 1524mm/1200mm | 1524mm |
| Max. rewinder Diameter | 1524mm/1200mm | 1524mm/1200mm | 1524mm/1200mm | 1524mm/1200mm | 1524mm |
| Gearing | 1/8cp | 1/8cp | 1/8cp | 1/8cp | 1/8cp |
| Max. printing speed | 150m/min | 150m/min | 150m/min | 150m/min | 150m/min |
| Diameter of web roller | 100mm | 100mm | 100mm | 100mm | 100mm |
| Motor power | 15kw–22kw | 15kw–22kw | 15kw–22kw | 22kw | 18.5kw |
| Drying mode | a. Warm Drying b.IR Drying c. UV Drying | ||||
| Oil Used | a. aqueous ink b. UV ink | ||||
| Power Requirement | 380V 3PH 50Hz | ||||
| Substrate | 17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper | ||||
| Specification | 56.5″(1430) | 64.2″(1630) | 72.0″(1830) |
| Max. web width | 1450mm | 1650mm | 1850mm |
| Max. printing width | 1430mm | 1630mm | 1830mm |
| Max. die-cutting width | 1430mm | 1630mm | 1830mm |
| Printing Repeat | 600–1430mm | 600–1430mm | 600–1430mm |
| Max. unwinder Diameter | 1524mm | 1524mm | 1524mm |
| Max. rewinder Diameter | 1524mm | 1524mm | 1524mm |
| Gearing | 1/8cp | 1/8cp | 1/8cp |
| Max. printing speed | 150m/min | 150m/min | 150m/min |
| Diameter of web roller | 100mm | 100mm | 100mm |
| Motor power | 22kw | 22kw | 30kw |
| Drying mode | a. Warm Drying b.IR Drying c. UV Drying | ||
| Oil Used | a. aqueous ink b. UV ink | ||
| Power Requirement | 380V 3PH 50Hz | ||
| Substrate | 17g copy paper, cotton paper, 80-450g chrome paper, aluminum-foil paper, BOPP, PET, paper board, kraft paper | ||
