Product Introduction

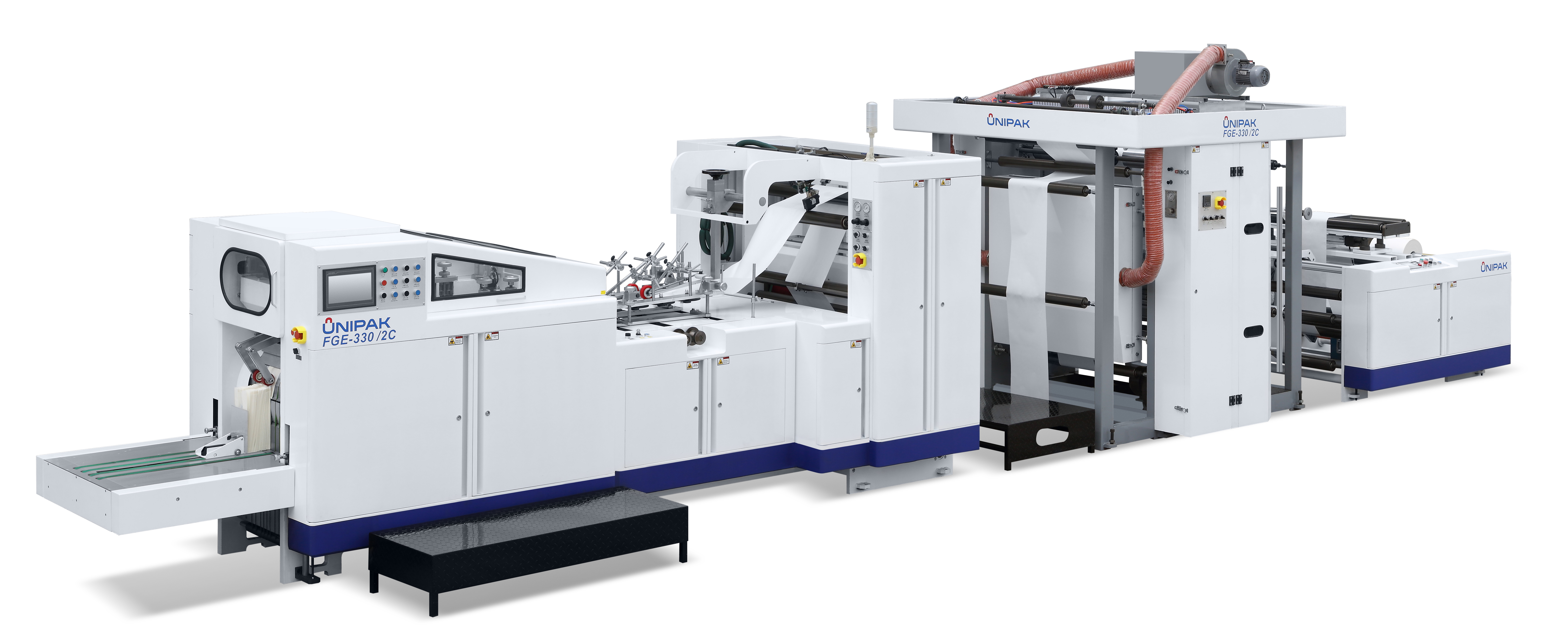

The FGE series flat & gusset paper bag producing machines are especially designed for emerging markets. The machines are suitable for Kraft and coated paper to produce flat bottom bags with gusset. They use roll-paper as unwinding material. In one, uninterrupted work-flow they handle pre-perforating, side gluing, folding, tube forming, separating, bottom folding and gluing to finally output of finished bag.

Optional equipment to further save cost and increase the bag value includes film window and in-line flexographic printing.


Machine Features

Unwinding unit with air shaft, automatic feeding and lock, powder brake for tension and web guiding.

Feeding of roll-paper controlled by servo drive system.

Photoelectric tracking of printed material.

Auto counting for convenient collecting and counting.

Safety devices to ensure operational safety.

Multi-functional touch-screen interface for easy operation.


Technical Parameters

Model FGE-270 FGE-330
Cut-off length 120-400mm 120-720mm
Bag body width 80-270mm 80-330mm
Gusset size 12-60mm 12-60mm
Max. speed 500bags/min 500bags/min
Paper thickness 35-100gsm 35-100gsm
Unwinding width ≤900mm ≤1000mm
Unwinding diameter ≤1200mm ≤1200mm
Plastic window width 60-250mm 60-310mm
Total power 16kw 16kw
Machine weight 4500kg 5000kg
Machine size 7.3×2.0x1.85m 7.3×2.1×1.9m

Machine speed may be influenced by paper weight, quality, bag size, glue, operator skill etc.

Bag Max. or Min. size is affected by different size combination. We reserve the rights of final interpretation.


Bag Production


Optional Equipment
